Revolutionizing Aviation Data: Reaching New Heights With Cloud-Native

Introduction

Introduction

Efficiency, speed and scalability are critical in ensuring a competitive advantage in the aviation industry where the volume of data is enormous. Aircraft today are data machines, spitting out a fire-hose of sensor data thousands of times per second - engine efficiency and fuel consumption, flight telemetry, and so forth. The information contained in the legacy on-premises system was latent, nightly batches of information, which was critical to our client.

This delay posed a threat to a time lag between an occurrence in the air and the capability to respond on the ground. Ellocent Labs designed a cloud-native solution because of the technical and financial requirements of scaling to process more than 1 Terabyte of data per day. The outcome: the cost of infrastructure is decreased by 50% and their data is converted into a real-time and strategic asset that leads to safer, more efficient, and profitable operations.

Challenge

The Challenges in Legacy System: A Deep Dive into Architectural

Bottlenecks

An in-depth evaluation of the current platform found a chain of tightly linked limitations that suffocated the performance and innovation.

The Data Flow Bottleneck:

Process: The aircraft telemetry data were landed on on-premises network storage and read to be processed.
Execution: This data was handled in monolithic Java application by processing in large batches at a frequency of 6-8 hours.
Impact: Hours were lost before vital events like a wobbling oil pressure gauge or an inefficient route could be known, and thus no proactive response could be taken.

Infrastructure and Operational Rigidity:

Exorbitant Server Costs: Dedicated servers meant exponentially high and fixed monthly payment of 11000 USD leading to high cost burden despite the current data volume.
Performance Bottlenecks: Fetching and processing large volumes of data across multiple sources took time that created performance delays within the applications which adversely affected the user experience of flight operators and engineers.
Scalability Limitations: It did not have the capacity to scale in a dynamic manner. Manual server provisioning was inefficient and time-consuming and this caused under-provisioning when the flights are busy and over-provisioning (and unnecessary expenditures) when it is not.
Deployments & Fault Tolerance: A single analytics model was not automatically updated but rather a coordinated manual deployment with many likely involving downtime. Its monolithic architecture featured one point of failure, in which failure of one module stopped the rest of the pipeline.
Icon

The Ellocent Labs Solution: A Detailed Blueprint for Cloud-Native

Transformation

We have done a basic re-architecting rather than a lift-and-shift. We dismantled the monolithic system in a systematically designed way and reconstructed it into a sequence of decoupled and event-driven micro-services on AWS, using industry best practices to do so in terms of orchestration, serverless computing, and observability.

Core Architecture Design Principles:

Microservices & Decoupling: Break the monolith into small (single-responsibility) services that might be created, scaled and deployed without depending on one another.
Event-Driven Processing: See all incoming aviation data as an endless stream of real-time information, so that it can react and analyse immediately.
Serverless-First: Give managed services a top priority and remove operational overhead, cost reduction, and automatic scale and resilience of AWS.
Infrastructure as Code (IaC): Reproducibility, Versioning, and Disaster recovery Design Infrastructure (code) defines and manages all cloud resources, and is managed by code (Terraform).

Detailed Challenge-by-Challenge Solution Breakdown:

1

CHALLENGE 1

Exorbitant Fixed Costs & Inefficient Resource Utilization

Solution: A Hybrid Serverless & Containerized Model

AWS Lambda for Event-Driven Tasks: We have found all non-continuous processing tasks (e.g., validation of data, data transformation, an alert) and put them as AWS Lambda serverless functions. This directly removed the expense of not utilised servers, since we now only paid by compute time in sub-second units.
ECS Fargate for Long-Running Services: Amazon ECS Fargate was used in cases where the core application services required running continuously. It is a serverless container system and therefore we did not have to provision or manage EC2 instances. The resource usage in our containers was only charged by vCPU and memory, and that is why the cost model is now much more fine-tuned and efficient in relation to dedicated servers.
Auto-Scaling Policies: We have set up accurate auto-scaling policies of both Lambda (controlling the number of concurrent executions) and ECS Fargate (scaling the number of containers) depending on the CloudWatch metrics such as CPU utilization, and Kinesis stream iterator age. This actually made sure that we utilized the least resources possible at any point in time.
2

CHALLENGE 2

Performance Bottlenecks & Data Latency

Solution: Real-Time Streaming & Parallel Processing

AWS Kinesis Data Streams for Ingestion: This is where the batch file processing has been substituted with AWS Kinesis Data streams. This service is capable of consuming thousands of data points per second of aircraft in real-time, which is a durable, ordered, and low-latency data entry point.
Parallel ETL with Lambda: A series of AWS Lambda functions were now run in parallel as new records were added to the Kinesis stream. This enabled simultaneous validation, enrichment and transformation of data reducing processing time by hours to seconds.
In-Memory Caching with ElastiCache: To store some frequently accessed data (flight statuses, aircraft information, and alert settings) we used Amazon ElastiCache (Redis). This lowered query times of dashboards and APIs to sub-milliseconds in response time.
3

CHALLENGE 3

Scalability Limitations & Manual Intervention

Solution: Automated Orchestration with Kubernetes & Managed Services

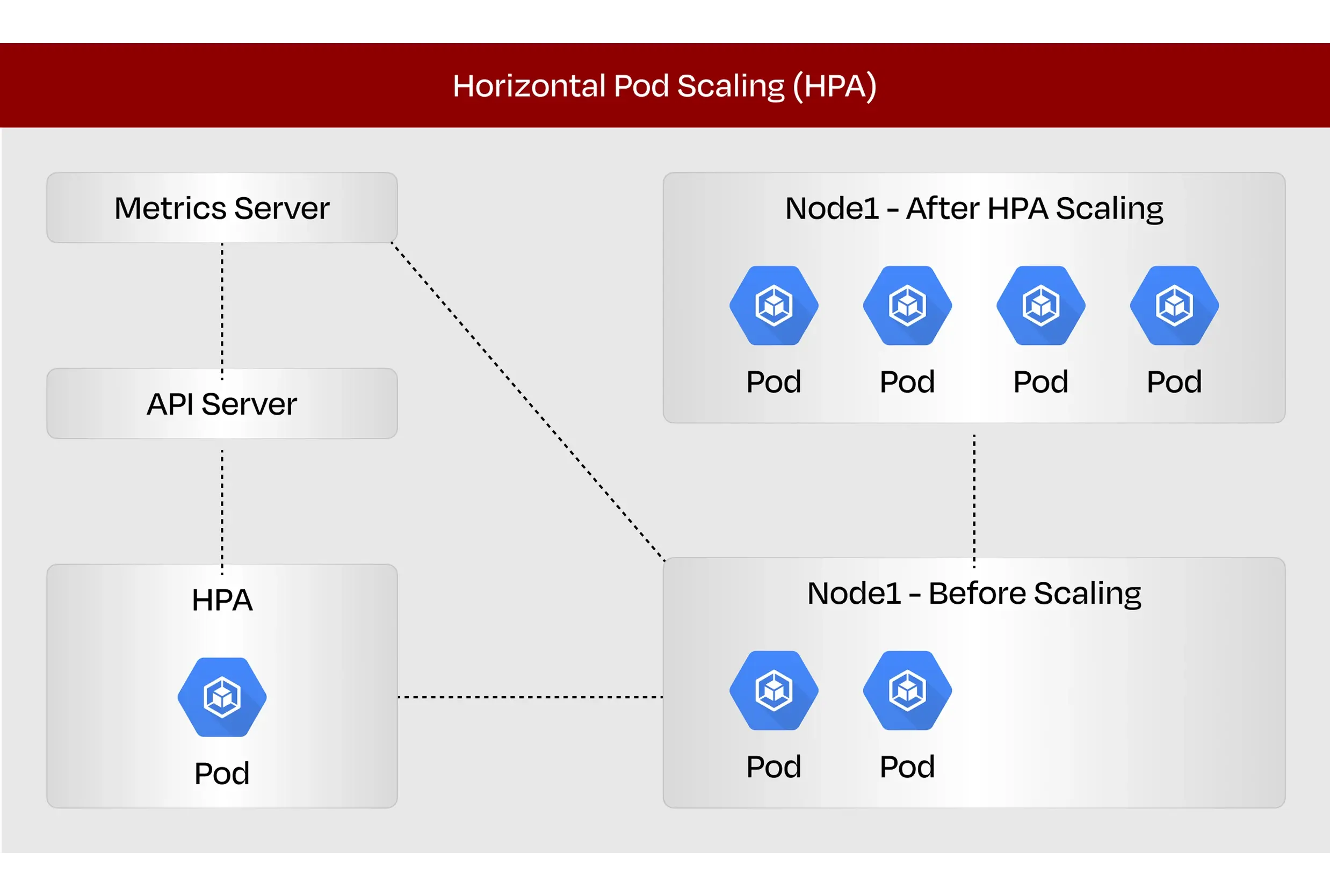

Kubernetes for Application Orchestration: We containerized our core analytics and API services using Docker and deployed them on a Kubernetes cluster (Amazon EKS). Kubernetes automatically handles the deployment, scaling (both up and down), and self-healing of these containerized services based on defined resource requests and limits.
Scalability
Managed AWS Services for Data Layer: We used inherently scalable data services:
    Kinesis automatically scales its shards to handle throughput changes.
    S3 provides infinite scalability for our data lake.
    Aurora/Redshift can be configured with auto-scaling compute nodes.
This combination completely eliminated the need for manual server provisioning or capacity planning.
4

CHALLENGE 4

Slow Deployment Cycles and High-Risk Updates

Solution: Fully Automated CI/CD Pipelines with Blue/Green Deployment

Infrastructure as Code with Terraform: All AWS infrastructure (VPC, ECS, Kinesis, databases) was defined and version-controlled in Terraform code. This enabled repeatable, peer-reviewed, and error-free environment provisioning.
Containerized Builds with GitHub Actions: We implemented a robust CI/CD pipeline using GitHub Actions. On every code commit, the pipeline automatically built Docker images, ran security scans and test suites, and pushed validated images to Amazon ECR.
Infrastructure
Zero-Downtime Blue/Green Deployments: We configured our ECS services to use blue/green deployment through AWS CodeDeploy. This meant new application versions were deployed alongside the old ones, and traffic was shifted only after health checks passed. This eliminated deployment downtime and provided an instant rollback mechanism, making releases safe and routine.
5

CHALLENGE 5

Limited Fault Tolerance and Single Points of Failure

Solution: A Resilient, Decoupled Architecture

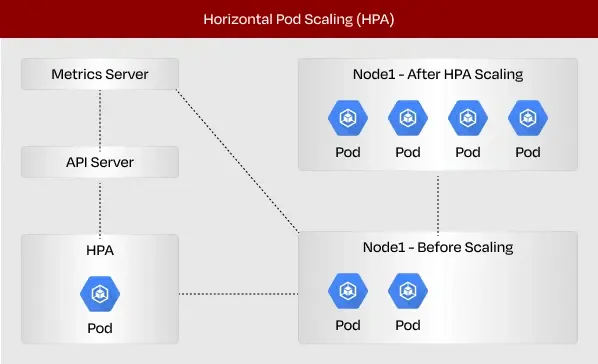

Microservice Isolation: By decomposing the monolith, we ensured that a failure in one service (e.g., the baggage tracking module) would not cascade and bring down the entire platform (e.g., the engine monitoring system).
Microservice
Multi-AZ and Multi-Region Deployment: Critical services like ECS tasks and RDS databases were deployed across multiple Availability Zones (AZs) for high availability. Our design also laid the groundwork for future multi-region disaster recovery.
Dead Letter Queues (DLQs) for Error Handling: We configured SQS Dead Letter Queues for both Lambda and Kinesis. If a message failed processing multiple times, it was moved to a DLQ for investigation, preventing data loss and ensuring the main data stream continued flowing uninterrupted.
Self-Healing with Kubernetes & ECS: Both Kubernetes and ECS constantly monitor the health of containers and automatically restart failed instances, ensuring the application remains available without manual intervention.
6

CHALLENGE 6

Lack of Real-Time Insights and Proactive Monitoring

Solution: End-to-End Observability and Real-Time Dashboards

The ELK Stack for Deep-Dive Analysis: We implemented the ELK Stack (Elasticsearch, Logstash, Kibana) to aggregate and analyze application logs. This gave us a powerful, centralized platform to troubleshoot complex issues, track user journeys, and perform historical analysis.
AWS CloudWatch & X-Ray for Real-Time Monitoring: For real-time metrics, logging, and distributed tracing, we used AWS-native tools. CloudWatch provided system-wide metrics and alarms, while AWS X-Ray gave us a visual map of requests as they traversed Lambda functions, Kinesis, and other services, instantly pinpointing the root cause of performance degradation.
Real-Time Dashboards with Amazon QuickSight: We connected Amazon QuickSight directly to our data in S3 and Redshift, creating live, interactive dashboards for operational teams. This provided immediate visibility into key metrics like fuel efficiency, engine health, and flight delays, enabling proactive decision-making.
7

CHALLENGE 7

Ensuring Security & Compliance

Solution: A Secure-by-Design Foundation

Network Isolation: The entire platform was deployed within a carefully architected Amazon VPC with public and private subnets, ensuring no direct internet access to critical backend services.
Identity and Access Management: We enforced the principle of least privilege using fine-grained AWS IAM roles and policies for both services and human users.
Encryption Everywhere: All data was encrypted at rest using AWS Key Management Service (KMS) and in transit using enforced TLS 1.2, meeting stringent aviation industry security standards.
Challenge

The Challenges in Legacy System: A Deep Dive into Architectural

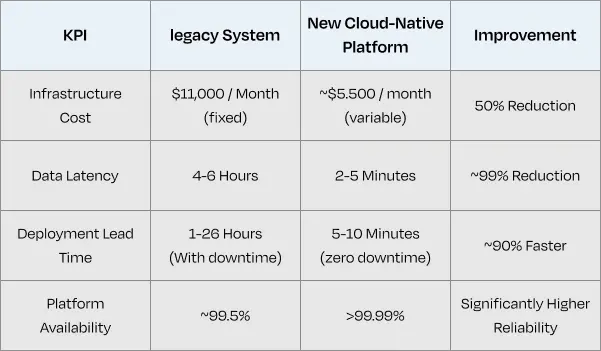

The new platform delivered quantitative and qualitative benefits across the organization.

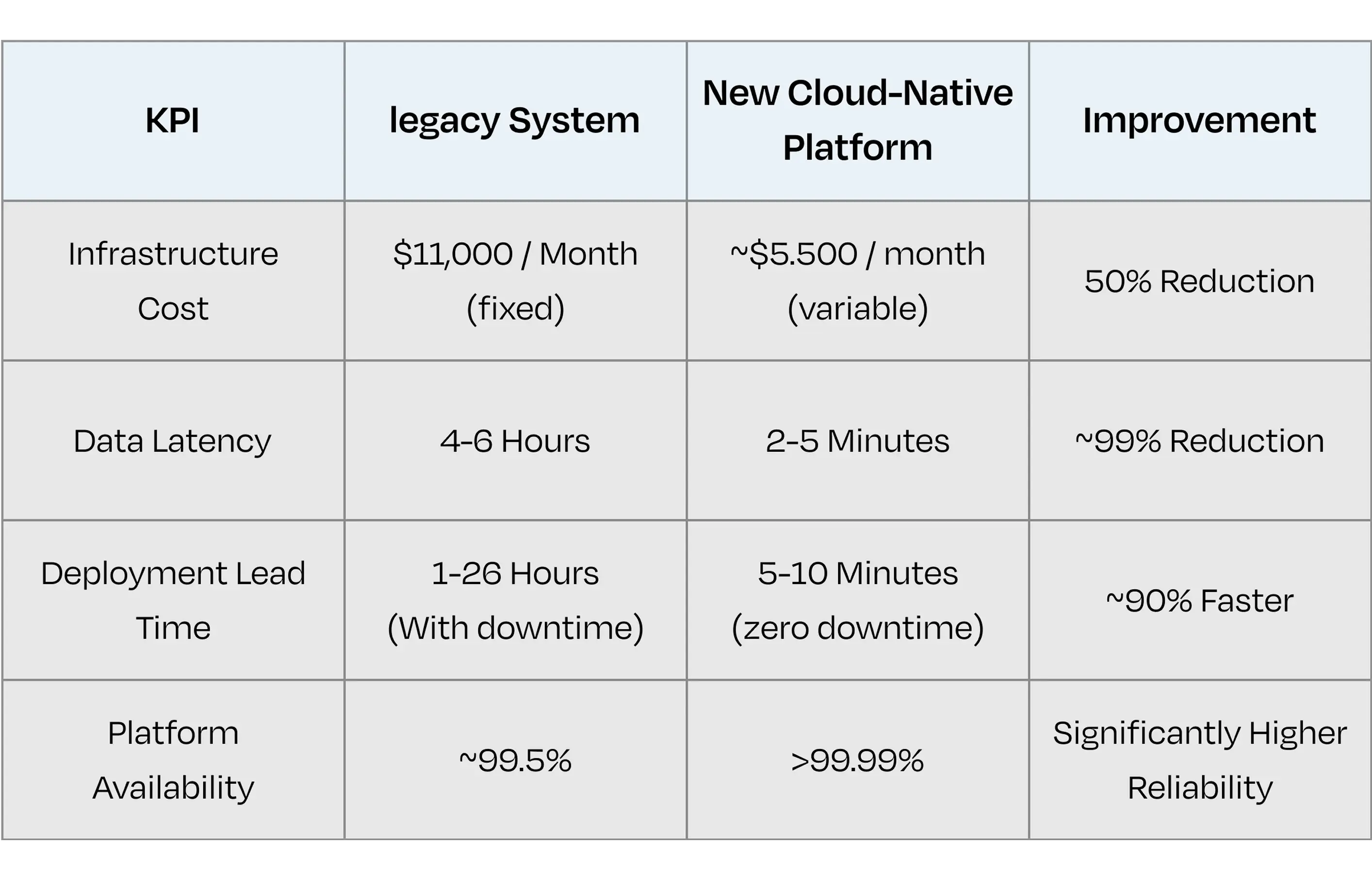

Quantitative Performance Metrics:

Quantitative Performance

Qualitative Business Outcomes:

Proactive Safety & Maintenance: Maintenance crews now receive alerts for potential engine issues while the aircraft is still in the air.
Increased Efficiency and Stability: Containerization and Kubernetes streamlined deployments, while the ELK stack provided the insights needed to ensure superior application stability and reliability.
Dynamic Scalability: The combination of Kubernetes and AWS Lambda ensured the system could seamlessly handle fluctuating data volumes without any manual intervention, optimizing resource utilization perfectly.
Foundation for Innovation: The development team was freed from infrastructure burdens, allowing them to focus on delivering new features and advanced analytics.
Challenge

Conclusion & Strategic Outlook

This project exemplifies that a cloud-native transformation is a strategic business initiative, not merely a technical migration. By embracing a modern, event-driven architecture and leveraging technologies like Kubernetes, AWS Lambda, and the ELK Stack, we transformed a major financial liability and operational risk into a scalable, efficient, and powerful asset.

The journey from a rigid, costly system to a dynamic, cost-effective platform has laid a robust foundation for the future, enabling the client to confidently pursue AI-driven predictive analytics and continue innovating in the competitive aviation market.

At Ellocent Labs, we believe that the future of aviation is intelligent, data-driven, and connected. This engagement stands as a testament to how cloud technology can elevate safety, efficiency, and profitability, one flight at a time.
