Revolutionizing SaaS Scalability: Automating Multi-Client Onboarding With a Single Codebase

Centralized Automation Orchestrator

A central onboarding service manages all automation tasks. Once a new business subscribes, this service triggers a sequence of events:

• Domain Provisioning – Creates and validates custom subdomains using AWS Route 53 and Amplify or CloudFront.
• User Authentication Setup – Deploys a pre-defined Amazon Cognito user pool and client app configuration specific to the new tenant.
• Email Template Configuration – Automatically configures SES templates for verification, password reset, and transactional messages.
• Storage Allocation - Provisions an S3 bucket or folder partition for the tenant, applying IAM policies for strict data isolation.

Each of these steps is fully automated using CloudFormation templates executed via the AWS SDK or Step Functions workflow.

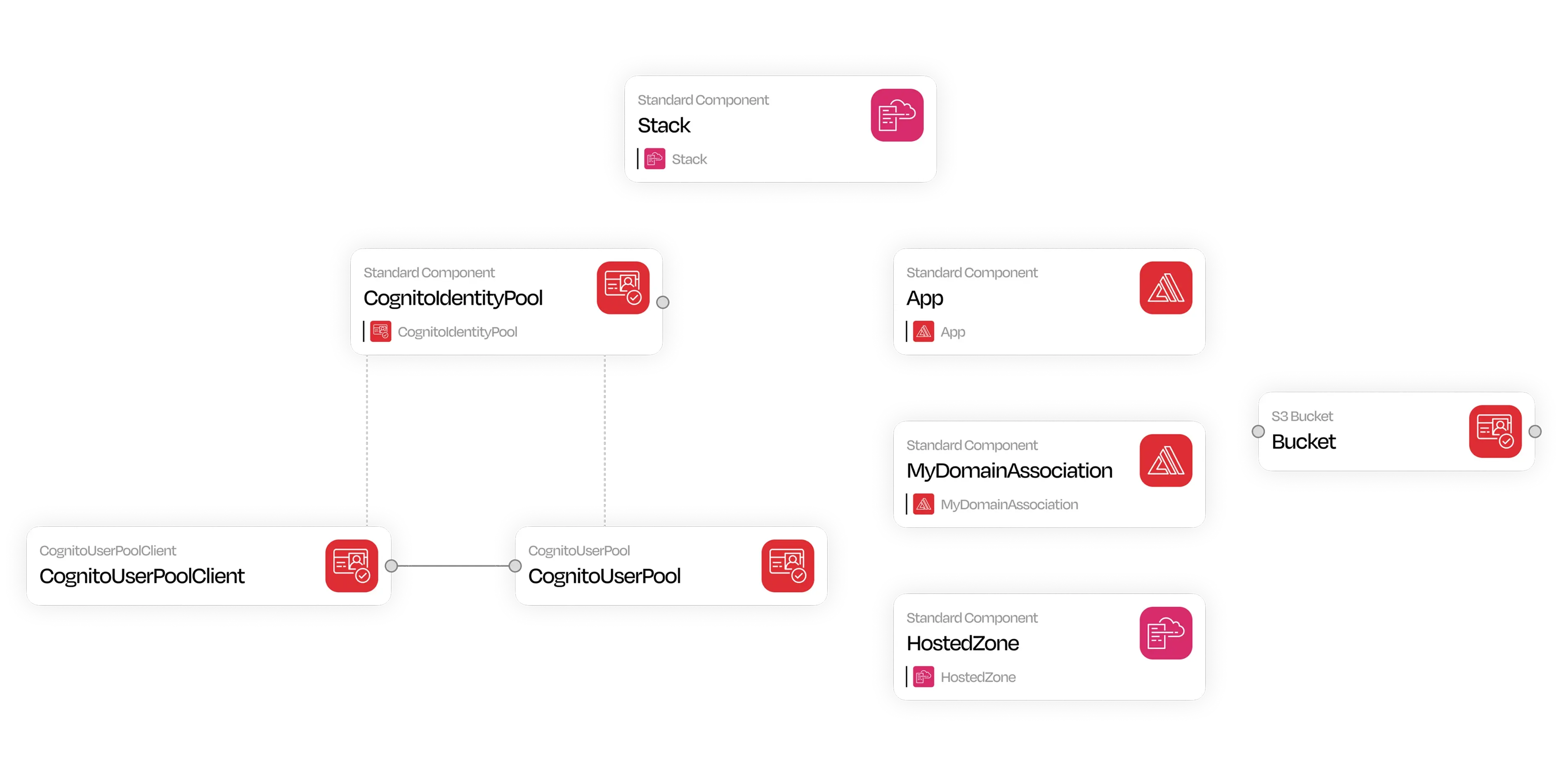

Reusable CloudFormation Templates

Reusable CloudFormation stacks were created for:

• Cognito user pool creation
• Route 53 record management
• SES email template creation
• S3 resource provisioning



Each stack accepts dynamic parameters (like tenant name, domain, or region) and deploys the full resource hierarchy consistently.
All resource identifiers (like Cognito pool IDs, domain URLs, and SES ARNs) are automatically stored in the database for future reference and API usage.

Multi-Tenant Database Management

The platform uses a shared database model with strong logical isolation:

• Tenant IDs act as partition keys.
• Row-level access control ensures data segregation.
• Encrypted columns secure sensitive data (e.g., credentials, Cognito pool details).

This hybrid model offers the efficiency of a shared database with the logical safety of per-tenant isolation — ensuring scalability and simplified maintenance.

Event-Driven Workflow Orchestration

Using AWS Step Functions and Lambda, each onboarding step runs as an independent, fault-tolerant task.

• Step Functions define the flow (domain → Cognito → SES → S3).
• AWS Lambda executes the logic for each component.
• Any failed step triggers an automatic rollback or retry with alert notifications through Amazon SNS.

This architecture provides elasticity, observability, and zero manual intervention.

Security and Compliance

Security is deeply embedded at every level:

• VPC Isolation: All resources are provisioned within private subnets, shielding them from direct internet access.
• IAM Role Segmentation: Each automation module operates with least privilege
• KMS Encryption: All sensitive data — both at rest and in transit — is encrypted using AWS KMS and TLS 1.2+.
• Audit Trails: CloudTrail logs every action, providing visibility and compliance with SOC 2 / ISO 27001 standards.

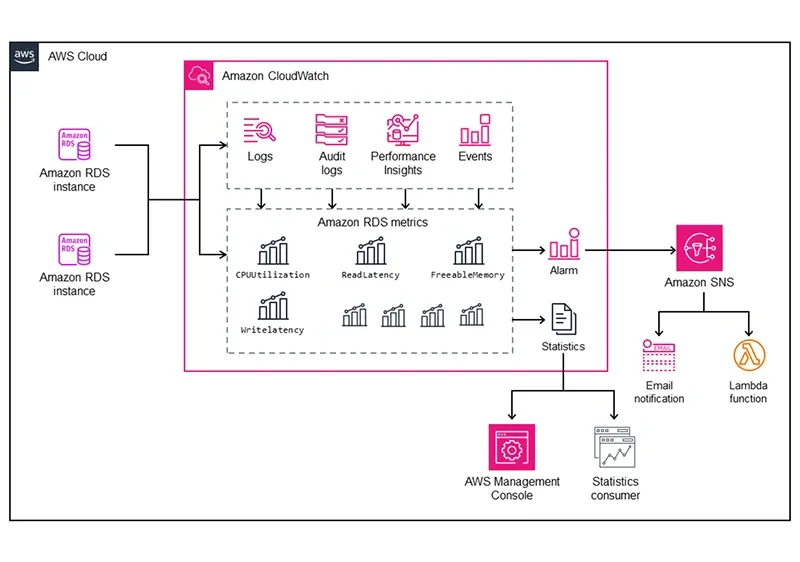

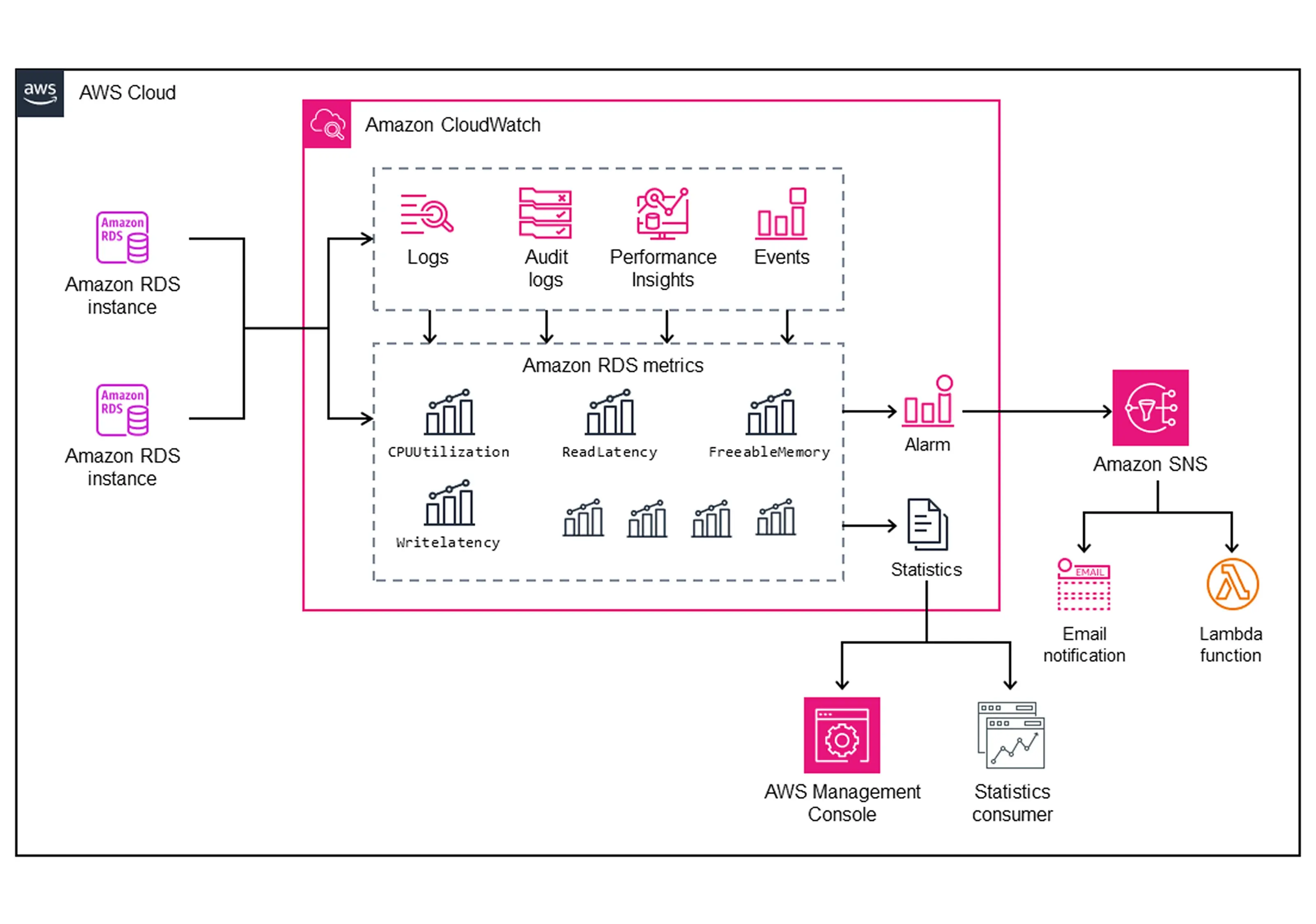

Monitoring and Observability

• CloudWatch Metrics and Dashboards: Monitor onboarding task duration, resource creation success rate, and latency.
• Centralized Logging (ELK Stack): Aggregate Lambda and Step Functions logs for detailed troubleshooting.
• Alerting via SNS: Automatically notify the DevOps team on failures or threshold breaches



User Interface for One-Click Onboarding

A secure web-based dashboard (built using React + API Gateway + Lambda backend) enables administrators to:

• Trigger onboarding for new clients with one click.
• View live provisioning status (e.g., “Creating Cognito Pool”, “Configuring SES Template”).
• Review logs and retry failed tasks if needed.

This simplifies operations and empowers non-technical users to onboard clients effortlessly.
